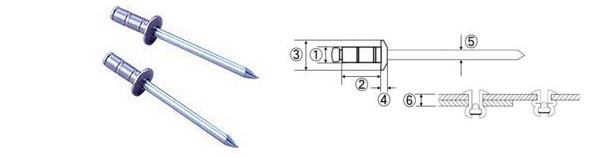

尺寸规格：
| 编号 | ① | ② | ③ | ④ | ⑤ | ⑥ | 抗拉强度 | 抗剪强度 | 适用材料厚度 |
| AP43 | φ3.2mm | 8.2mm | φ6.4mm | 1.1mm | φ1.9mm | 1.0～4.8mm | 0.97 | 0.74 | 1.0～4.8mm |
| AP45 | φ3.2mm | 13.3mm | φ6.4mm | 1.1mm | φ1.9mm | 4.8～8.0mm | 0.97 | 0.74 | 4.8～8.0mm |
| AP54 | φ4.0mm | 10.5mm | φ8.0mm | 1.3mm | φ2.4mm | 1.2～6.4mm | 1.64 | 1.15 | 1.2～6.4mm |
| AP64 | φ4.8mm | 11.0mm | φ9.6mm | 1.9mm | φ2.9mm | 1.6～6.4mm | 2.38 | 1.68 | 1.6～6.4mm |
| AP68 | φ4.8mm | 18.5mm | φ9.6mm | 1.9mm | φ2.9mm | 6.4～12.7mm | 2.38 | 1.68 | 6.4～12.7mm |
