紧固件解决方案专家

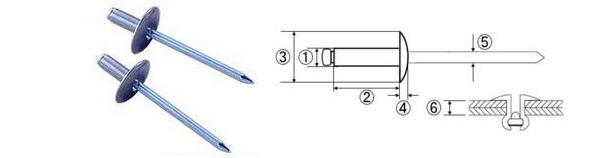

尺寸规格：
| 编号 | ① | ② | ③ | ④ | ⑤ | ⑥ | 抗拉强度 | 抗剪强度 | 适用材料厚度 |
| NSA54LF | φ4.0mm | 10.5mm | φ12.0mm | 1.7mm | φ2.24mm | 3.2～6.4mm | 2.2 | 1.55 | 3.2～6.4mm |
| NSA55LF | φ4.0mm | 12.2mm | φ12.0mm | 1.7mm | φ2.24mm | 4.8～8.0mm | 2.2 | 1.55 | 4.8～8.0mm |
| NSA56LF | φ4.0mm | 13.9mm | φ12.0mm | 1.7mm | φ2.24mm | 6.4～9.5mm | 2.2 | 1.55 | 6.4～9.5mm |
| NSA58LF | φ4.0mm | 17.2mm | φ12.0mm | 1.7mm | φ2.24mm | 9.5～12.7mm | 2.2 | 1.55 | 8.0～12.7mm |
| NSA62LF | φ4.8mm | 7.6mm | φ15.9mm | 2.2mm | φ2.64mm | 1.6～3.2mm | 3.3 | 2.2 | 1.6～3.2mm |
| NSA63LF | φ4.8mm | 9.3mm | φ15.9mm | 2.2mm | φ2.64mm | 1.6～4.8mm | 3.3 | 2.2 | 1.6～4.8mm |
| NSA64LF | φ4.8mm | 11.0mm | φ15.9mm | 2.2mm | φ2.64mm | 3.2～6.4mm | 3.3 | 2.2 | 3.2～6.4mm |
| NSA65LF | φ4.8mm | 12.8mm | φ15.9mm | 2.2mm | φ2.64mm | 4.8～8.0mm | 3.3 | 2.2 | 4.8～8.0mm |
| NSA66LF | φ4.8mm | 14.5mm | φ15.9mm | 2.2mm | φ2.64mm | 6.4～9.5mm | 3.3 | 2.2 | 6.4～9.5mm |
| NSA68LF | φ4.8mm | 17.9mm | φ15.9mm | 2.2mm | φ2.64mm | 9.5～12.7mm | 3.3 | 2.2 | 9.5～12.7mm |
| NSA610LF | φ4.8mm | 21.3mm | φ15.9mm | 2.2mm | φ2.64mm | 12.7～15.9mm | 3.3 | 2.2 | 12.7～15.9mm |
| NSA612LF | φ4.8mm | 24.8mm | φ15.9mm | 2.2mm | φ2.64mm | 15.9～19.1mm | 3.3 | 2.2 | 15.9～19.1mm |
| NSA614LF | φ4.8mm | 28.2mm | φ15.9mm | 2.2mm | φ2.64mm | 19.1～22.3mm | 3.3 | 2.2 | 19.1～22.3mm |
| NSA616LF | φ4.8mm | 29.7mm | φ15.9mm | 2.2mm | φ2.64mm | 22.3～25.4mm | 3.3 | 2.2 | 22.3～25.4mm |
