紧固件解决方案专家

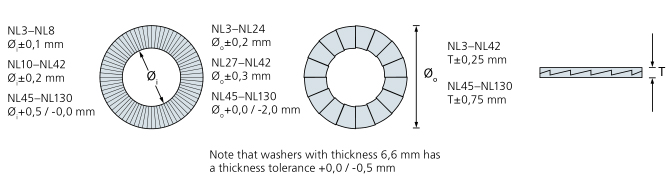

| 垫圈大小 | 螺栓尺寸 | øi(mm) | ø0(mm) | 厚度 T(mm) | 最少包装(对) | 参考重量kg/100对 | |
| 度量 | UNC | ||||||
| NL3SS-254 | M3 | #5 | 3.4 | 7.0 | 2.2 | 200 | 0.04 |
| NL3.5SS-254 | M3.5 | #6 | 3.9 | 7.6 | 2.2 | 200 | 0.04 |
| NL3.5spSS-254 | M3.5 | #6 | 3.9 | 9.0 | 2.2 | 200 | 0.07 |
| NL4SS-254 | M4 | #8 | 4.4 | 7.6 | 2.2 | 200 | 0.04 |
| NL4spSS-254 | M4 | #8 | 4.4 | 9.0 | 2.2 | 200 | 0.07 |
| NL5SS-254 | M5 | #10 | 5.4 | 9.0 | 2.2 | 200 | 0.06 |
| NL5spSS-254 | M5 | #10 | 5.4 | 10.8 | 2.2 | 200 | 0.11 |
| NL6SS-254 | M6 | 6.5 | 10.8 | 2.2 | 200 | 0.09 | |
| NL6spSS-254 | M6 | 6.5 | 13.5 | 2.0 | 200 | 0.16 | |
| NL1/4"SS-254 | 1/4” | 7.2 | 11.5 | 2.2 | 200 | 0.09 | |
| NL1/4"spSS-254 | 1/4” | 7.2 | 13.5 | 2.2 | 200 | 0.15 | |
| NL8SS-254 | M8 | 5/16” | 8.7 | 13.5 | 2.0 | 200 | 0.12 |
| NL8spSS-254 | M8 | 5/16” | 8.7 | 16.6 | 2.0 | 200 | 0.22 |
| NL3/8"SS-254 | 3/8” | 10.3 | 16.6 | 2.0 | 200 | 0.19 | |
| NL3/8"spSS-254 | 3/8” | 10.3 | 21.0 | 2.0 | 200 | 0.38 | |
| NL10SS-254 | M10 | 10.7 | 16.6 | 2.0 | 200 | 0.18 | |
| NL10spSS-254 | M10 | 10.7 | 21.0 | 2.0 | 200 | 0.37 | |
| NL11SS-254 | M11 | 7/16” | 11.4 | 18.5 | 2.2 | 200 | 0.26 |
| NL12SS-254 | M12 | 13 | 19.5 | 2.0 | 200 | 0.23 | |
| NL12spSS-254 | M12 | 13 | 25.4 | 3.0 | 100 | 0.82 | |
| NL1/2"SS-254 | 1/2” | 13.5 | 19.5 | 2.2 | 200 | 0.23 | |
| NL1/2sp"SS-254 | 1/2” | 13.5 | 25.4 | 3.2 | 100 | 0.49 | |
| NL14SS-254 | M14 | 9/16” | 15.2 | 23.0 | 3.0 | 100 | 1.31 |
| NL14spSS-254 | M14 | 9/16” | 15.2 | 30.7 | 3.2 | 100 | 0.59 |
| NL16SS-254 | M16 | 5/8” | 17 | 25.4 | 3.0 | 100 | 1.13 |
| NL15spSS-254 | M16 | 5/8” | 17 | 30.7 | 3.2 | 100 | 0.80 |
| NL18SS-254 | M18 | 19.5 | 29.0 | 3.2 | 100 | 1.56 | |
| NL18spSS-254 | M18 | 19.5 | 34.5 | 3.2 | 100 | 0.96 | |
| NL3/4"SS-254 | 3/4” | 20 | 30.7 | 3.2 | 100 | 2.14 | |
| NL3/4"spSS-254 | 3/4” | 20 | 39.0 | 3.2 | 100 | 0.82 | |
| NL20SS-254 | M20 | 21.4 | 30.7 | 3.4 | 100 | 1.98 | |
| NL2OspSS-254 | M20 | 21.4 | 39.0 | 3.2 | 100 | 1.19 | |
| NL22SS-254 | M22 | 7/8” | 23.4 | 34.5 | 3.2 | 50 | 2.44 |
| NL22spSS-254 | M22 | 7/8” | 23.4 | 42.0 | 3.2 | 100 | 2.23 |
| NL24SS-254 | M24 | 25.3 | 39.0 | 3.2 | 50 | 3.22 | |
| NL24spSS-254 | M24 | 25.3 | 48.5 | 3.2 | 100 | 1.42 | |
| NL1"SS-254 | 1” | 27.9 | 39.0 | 3.2 | 50 | 3.22 | |
| NL1"spSS-254 | 1” | 27.9 | 48.5 | 3.2 | 50 | 3.10 | |
| NL27SS-254 | M27 | 28.4 | 42.0 | 5.8 | 25 | 5.85 | |
| NL30SS-254 | M30 | 1 1/8” | 31.4 | 47.0 | 5.8 | 50 | 4.04 |
| NL33SS-254 | M33 | 1 1/4” | 34.4 | 48.5 | 5.8 | 25 | 4.25 |
| NL36SS-254 | M36 | 1 3/8” | 37.4 | 55.0 | 5.8 | 25 | 5.96 |
| NL39SS-254 | M39 | 1 1/2” | 40.4 | 58.5 | 5.8 | 25 | 6.74 |
