尺寸规格：

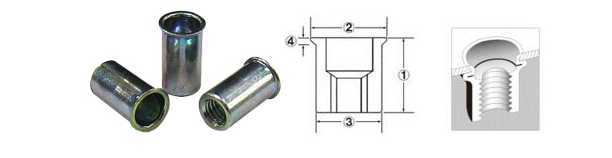

| 编号 | ① | ② | ③ | ④ | 抗剪强度 | 扭矩强度 | 适用螺丝 | 适用材料厚度 |
| NSK3M | 8.5mm | 6.0mm | 5.0mm | 0.5mm | 4.9 | 3.9 | M3x0.5 | 1.0～2.0mm |
| NSK4M | 11.3mm | 7.0mm | 6.0mm | 0.5mm | 7.3 | 5.9 | M4x0.7 | 1.0～2.0mm |
| NSK5M | 12.7mm | 8.0mm | 7.0mm | 0.5mm | 10.8 | 9.3 | M5x0.8 | 1.0～3.2mm |
| NSK6M | 15.4mm | 10.0mm | 9.0mm | 0.8mm | 19.6 | 17.6 | M6x1.0 | 1.0～3.2mm |
| NSK8M | 16.5mm | 12.0mm | 11.0mm | 0.8mm | 21.5 | 34.3 | M8x1.25 | 1.0～3.2mm |
| NSK10M | 17.8mm | 14.0mm | 13.0mm | 0.8mm | 24.5 | 44.1 | M10x1.5 | 1.0～4.0mm |
| NSK415M | 10.0mm | 7.0mm | 6.0mm | 0.5mm | 6.7 | 5.9 | M4x0.7 | 0.5～1.5mm |
| NSK425M | 11.0mm | 7.0mm | 6.0mm | 0.5mm | 6.7 | 5.9 | M4x0.7 | 1.5～2.5mm |
| NSK435M | 12.0mm | 7.0mm | 6.0mm | 0.5mm | 6.7 | 5.9 | M4x0.7 | 2.5～3.5mm |
| NSK515M | 11.0mm | 8.0mm | 7.0mm | 0.5mm | 9.8 | 10.8 | M5x0.8 | 0.5～1.5mm |
| NSK525M | 12.0mm | 8.0mm | 7.0mm | 0.5mm | 9.8 | 10.8 | M5x0.8 | 1.5～2.5mm |
| NSK535M | 13.0mm | 8.0mm | 7.0mm | 0.5mm | 9.8 | 10.8 | M5x0.8 | 2.5～3.5mm |
| NSK625M | 14.0mm | 10.0mm | 9.0mm | 0.5mm | 16.7 | 19.6 | M6x1.0 | 1.0～2.5mm |
| NSK640M | 15.5mm | 10.0mm | 9.0mm | 0.5mm | 16.7 | 19.6 | M6x1.0 | 2.5～4.0mm |
| NSK825M | 15.5mm | 12.0mm | 11.0mm | 0.5mm | 23.5 | 37.2 | M8x1.25 | 1.0～2.5mm |
| NSK840M | 17.0mm | 12.0mm | 11.0mm | 0.5mm | 23.5 | 37.2 | M8x1.25 | 2.5～4.0mm |
| NSK1025M | 16.0mm | 14.0mm | 13.0mm | 0.5mm | 29.4 | 58.8 | M10x1.5 | 1.0～2.5mm |
| NSK1040M | 17.5mm | 14.0mm | 13.0mm | 0.5mm | 29.4 | 58.8 | M10x1.5 | 2.5～4.0mm |
| NSK1240M | 20.8mm | 18.0mm | 16.0mm | 0.7mm | 40.2 | 97.2 | M12×1.75 | 2.5～4.0mm |
