产品介绍：
Bulbed CherryLOCK®铆钉锁定主轴和冲洗压结构。他们符合采购规范和标准nas1740页nas1738和nas1739。
Bulbed CherryLOCK®是一个完整的剪切紧固系统。它的特点可以用于良好的强度和性能，在厚和薄的床单。它提供了高可能的设计完整性，特别是在双韧窝或薄背面片材应用。

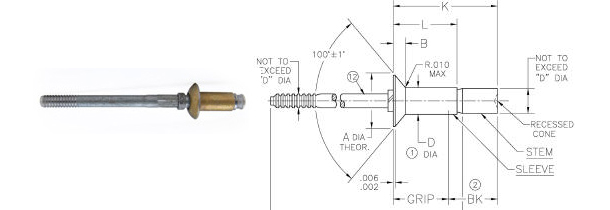

尺寸规格：
| 编号 | A | B | D | Z 参考 | 孔的限制 | |||
| A | B | C | 最小 | 最大 | ||||
| -4 | .225 | .042 | .125 | 1.79 | / | / | 0.129 | 0.132 |
| -5 | .286 | .055 | .156 | 1.81 | 2.06 | / | 0.16 | 0.164 |
| -6 | .353 | .070 | .187 | 1.85 | 2.10 | 2.35 | 0.192 | 0.196 |
| -8 | .476 | .095 | .250 | 1.97 | 2.22 | 2.47 | 0.256 | 0.261 |
| 编号 | GRIP 范围 | 铆钉 组 |
‐4 直径 | ‐5 直径 | ‐6 直径 | ‐8 直径 | |||||||||
| 最小 | 最大 | L | K | BK | L | K | BK | L | K | BK | L | K | BK | ||
| -2 | ⑤ | .125 | A | .260 | .45 | .30 | .263 | .44 | .28 | .287 | .48 | .26 | / | / | / |
| -3 | .126 | .187 | .323 | .57 | .35 | .326 | .56 | .34 | .350 | .60 | .32 | .63 | .58 | 0.37 | |
| -4 | .188 | .250 | .385 | .69 | .41 | .388 | .67 | .39 | .412 | .72 | .37 | .75 | .64 | 0.43 | |
| -5 | .251 | .312 | .448 | .81 | .46 | .451 | .79 | .45 | .475 | .83 | .43 | .87 | .70 | 0.48 | |
| -6 | .313 | .375 | .510 | .93 | .52 | .513 | .91 | .50 | .537 | .95 | .48 | .99 | .77 | 0.54 | |
| -7 | .376 | .437 | .573 | 1.05 | .57 | .576 | 1.03 | .56 | .600 | 1.07 | .54 | 1.11 | .83 | .60 | |
| -8 | .438 | .500 | .635 | 1.17 | .63 | .638 | 1.15 | .62 | .662 | 1.19 | .60 | 1.23 | .89 | .65 | |
| -9 | .501 | .562 | .698 | 1.29 | .68 | .701 | 1.27 | .67 | .725 | 1.31 | .65 | 1.34 | .95 | .71 | |
| -10 | .563 | .625 | B | / | / | / | .763 | 1.44 | .78 | .787 | 1.48 | .76 | 1.52 | 1.02 | .82 |
| -11 | .626 | .687 | / | / | / | / | / | / | .850 | 1.60 | .82 | 1.64 | 1.03 | .88 | |
| -12 | .688 | .750 | / | / | / | / | / | / | .912 | 1.72 | .88 | 1.77 | 1.04 | .94 | |
| -13 | .751 | .812 | / | / | / | / | / | / | .975 | 1.83 | .94 | 1.89 | 1.05 | 1.00 | |
| -14 | .813 | .875 | C | / | / | / | / | / | / | 1.037 | 1.95 | 1.00 | 2.01 | 1.06 | 1.06 |
